SORALUCE FR-W floor type milling boring machine

Avant-garde technology in a heavy-duty machine for the highest precision

  • Advanced SORALUCE technology geared towards maximising productivity, precision and customisation: DAS system, Modular Quill, Ram Balance, Accura Heads, SSV and Adaptive Control
  • Multitasking machine: milling and turning solution in a single set-up
  • Automated solutions: integrated palletised workpiece loading and unloading systems and robot-based solutions
  • SORALUCE head technology: highly reliable, extensive range of SORALUCE quills and heads
  • Automatic head and tool changing systems
  • SORALUCE Digital, Data System: comprehensive monitoring package with continuous information of machine and process status
  • Improved stability to enable high stock removal for components belonging to energy, shipyard, mining and capital goods industries
  • Flexible machine architecture facilitating different machine configurations, the use of different work stations and pendulum machining
  • Total machine concept design: complete working area analysed for optimal comfort, safety and ergonomics (maintenance spots, operator platform)

Characteristics



FR 4000

FR 6000

FR 8000

FR n x 8000

Longitudinal traverse, “X” axis*

mm

4000

6000

8000

n x 2000

Vertical traverse, “Y” axis

mm

3600 / 4000 / 4500

Cross traverse, “Z” axis

mm

1600 / 1900

Spindle power

kW

46 / 70

Spindle nose taper



ISO-50 / HSK-100

Spindle speed range

min-1

2500 ÷ 6000 / 30000 / 40000

Rapid traverse

mm/min

25000

CNC System**



HEIDENHAIN TNC 640 / SIEMENS 840 D SL

Coolant system



External coolant system over a ring / Internal coolant system up to 70 bar

Tool magazine

No. tools

60 / 80 / 100 / 120 / 150 / 200

Machine weight

Kg

61000

67400

73800

61000+n x 3200

Characteristics



FR-W Machine version with Modular Quill

Quill Diameter

mm

130

150

180

Quill cross traverse, "W" axis

mm

700

1000

Ram traverse

mm

1600 / 1900

1900

Spindle power

kW

53 / 74 / 101

Spindle speed range

min-1

2500 - 3000

* Other specifications under request | ** Other CNC systems under request

Customisation

Select your head:

Technical data

It enables for:

  • Automatic indexing of vertical and diagonal articulations.
  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system.
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • 22 / 24 / 28 / 37 / 43 / 46 / 55 kW
  • 2.5° x 2.5° / 0.001° x 0.001°
  • 4000 / 5000 / 6000 / 7000 min-1

Technical data

It enables for:

  • Automatic indexing of vertical and horizontal articulations.
  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system.
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • 37 / 43 / 46 kW
  • 1º x 1º
  • 4000 / 5000 min-1

Technical data

  • 5-axis continuous indexing head, indexing at 0,001ºx0,001º
  • Full 5 axis machining or use for fast positioning
  • Automatic tool changing.
  • Automatic head changing
  • Cooling through the spindle
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • Spindle locking option (turning operations)
  • Available for SORALUCE FP, FR and FXR models
  • 37 kW
  • 0.001° x 0.001°
  • 7000 min-1

Technical data

It enables for:

  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system (no external tubes exposed to chips).
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • Flexibility
  • Interchangeability
  • Options
  • C Axis
  • Maintainability
  • 43 / 46 / 49 / 81 / 106 kW
  • 2000 / 3000 / 4000 / 5000 min-1

Technical data

  • Special angular heads (railway bogie, motor block, etc.).
  • Special adaptors

Technical data

  • Automatic indexing head with turning capabilities
  • Up to 4000 rpm with standard steel bearings, or 5000 rpm with hybrid bearings
  • Air-oil lubricated gears
  • The head includes a clutch in the spindle area for positioning and clamping the spindle at any angle for turning operations. The clutch hydraulically clamps and unclamps the rotation of the spindle for turning operations
  • Possibility of working with bigger diameter workpieces, performing turning operations in a diagonal direction (interpolation X/Z axes)
  • The head can be positioned to avoid interferences with the workpiece
  • The use of this head is highly recommended on multitasking machines (milling and turning)
  • 37 kW
  • 2.5° x 2.5° / 0.001° x 0.001°
  • 4000 / 5000 min-1

Technical data

  • NC Facing heads
  • Angular heads
  • 5 axis heads
  • Electrospindles

Technical data

  • Heavy duty angular head
  • Angular and horizontal extensions
  • Turning adaptors
  • O&G oriented heads
  • Rotary couplings

Technical data

It enables for:

  • Automatic tool changing.
  • Automatic head changing.
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.



  • Ø130 mm, W=700 mm, 53-101 kW / 2500÷3000 min-1
  • Ø150 mm, W=1000 mm, 53-101 kW / 2500÷3000 min-1
  • Ø180 mm, W=1000 mm, 53-101 kW / 2500÷3000 min-1
  • Ø200 mm, W=1200 mm, 53-101 kW / 2500÷3000 min-1



+ U Axis

+ Quill driven tools

+ Certain Operations

Working Stations

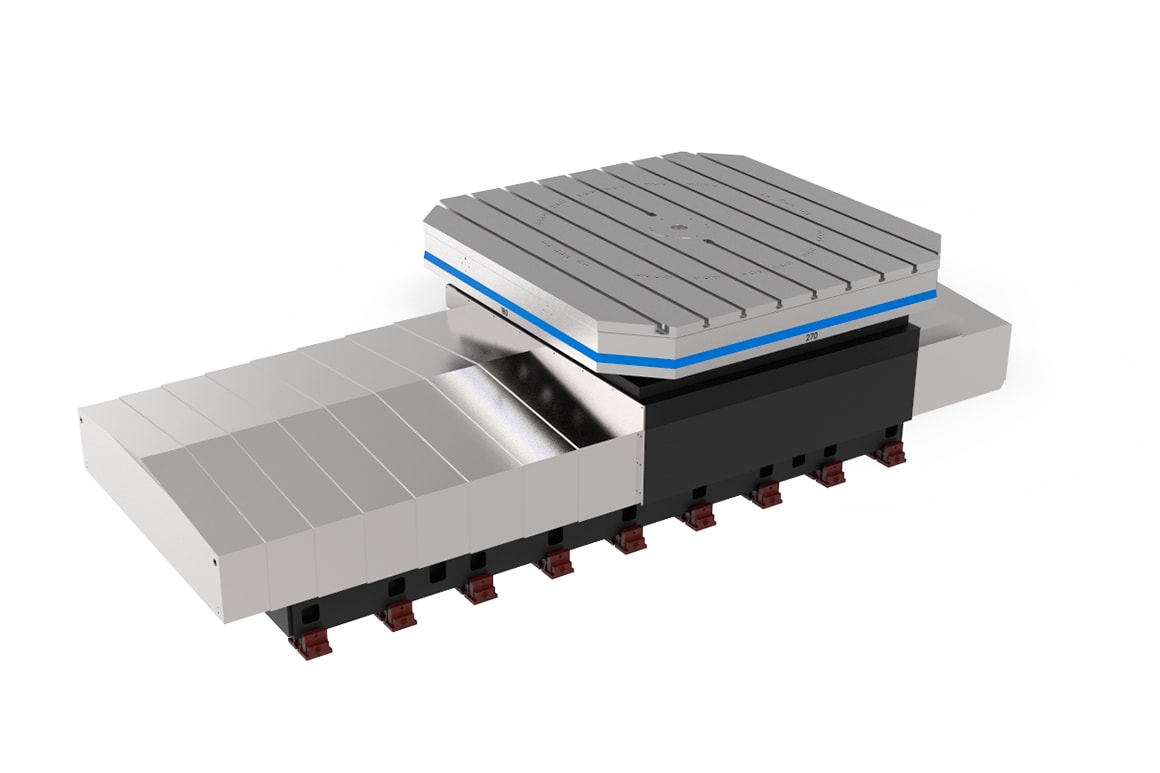

Rotary and rotary-travelling tables

Rotary and rotary-travelling tables

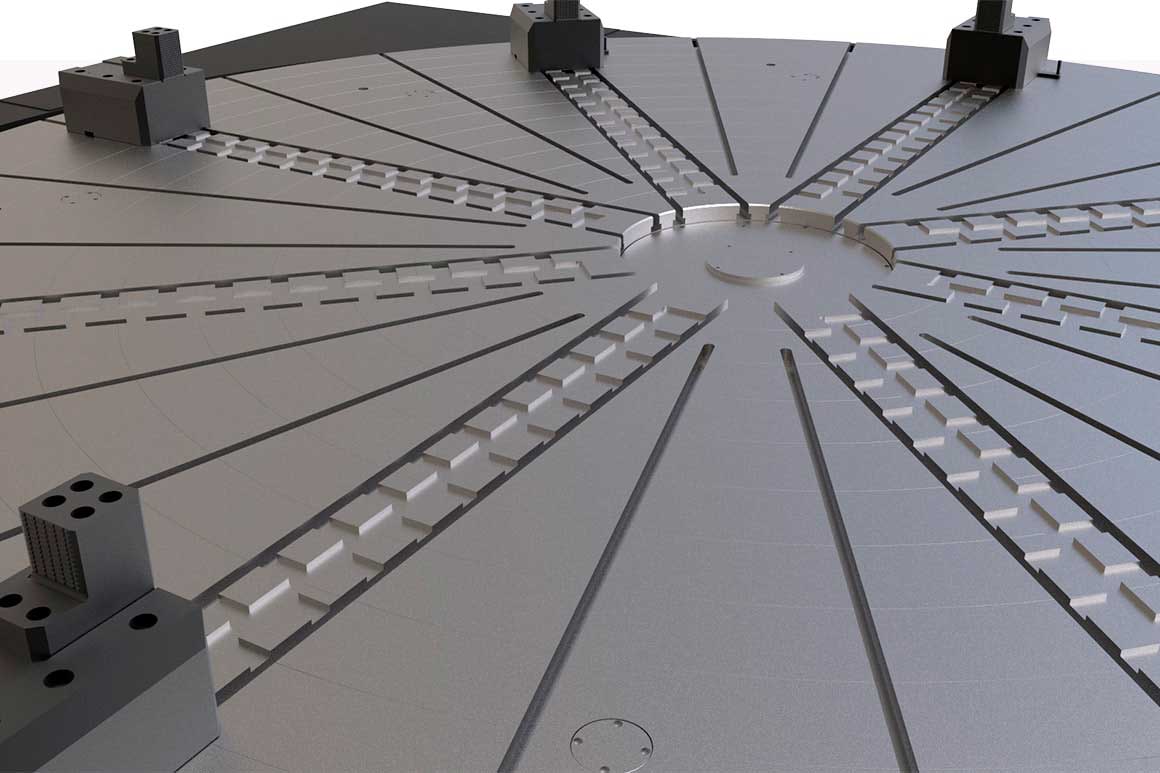

Turning and rotary-turning tables

Turning and rotary-turning tables

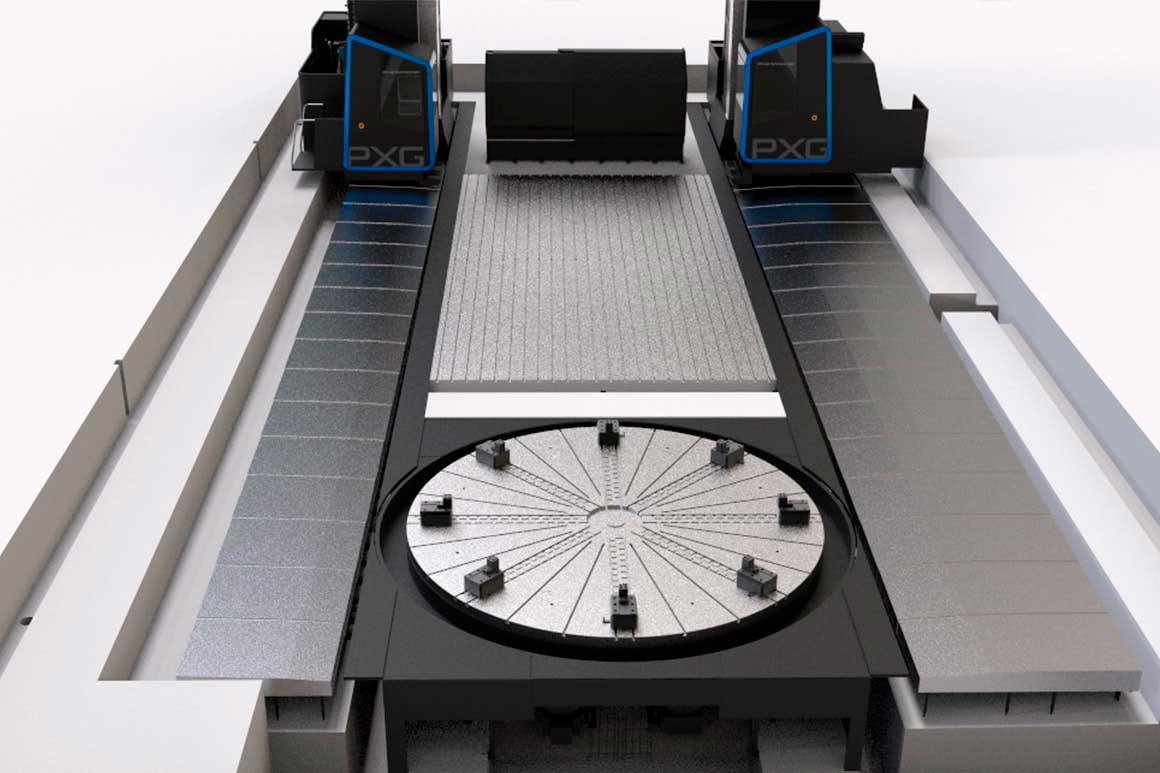

Floor plates

Floor plates

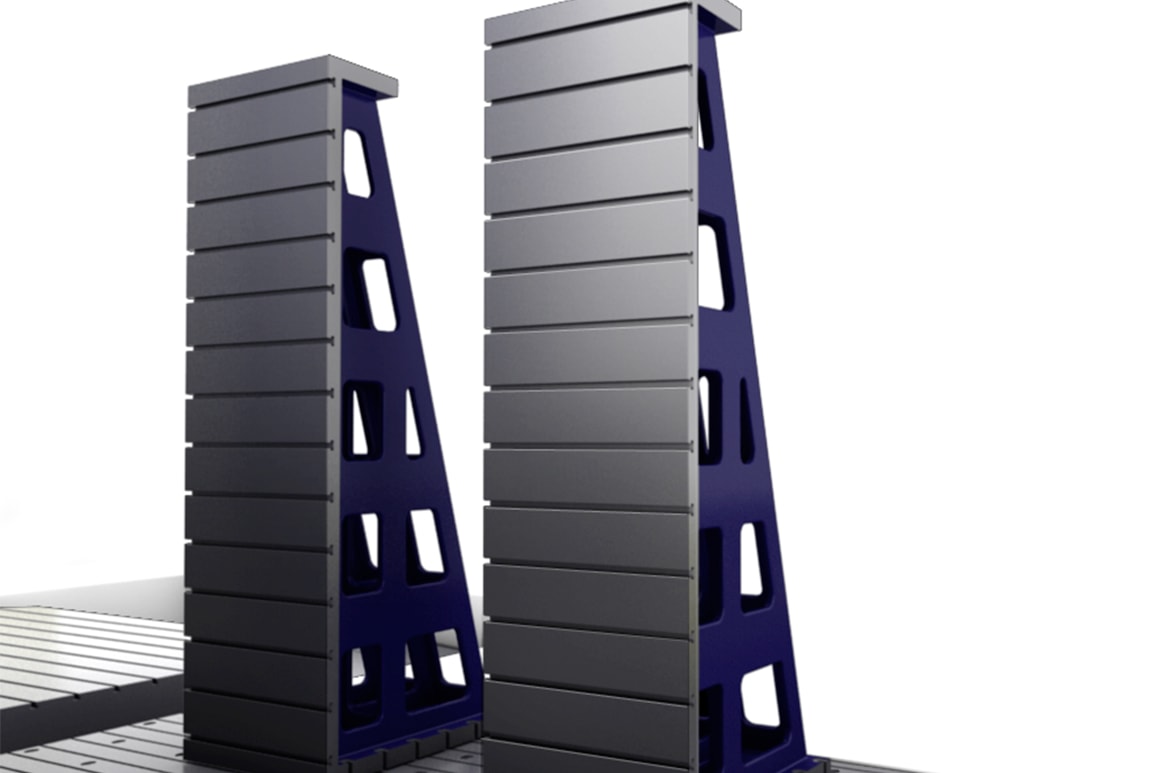

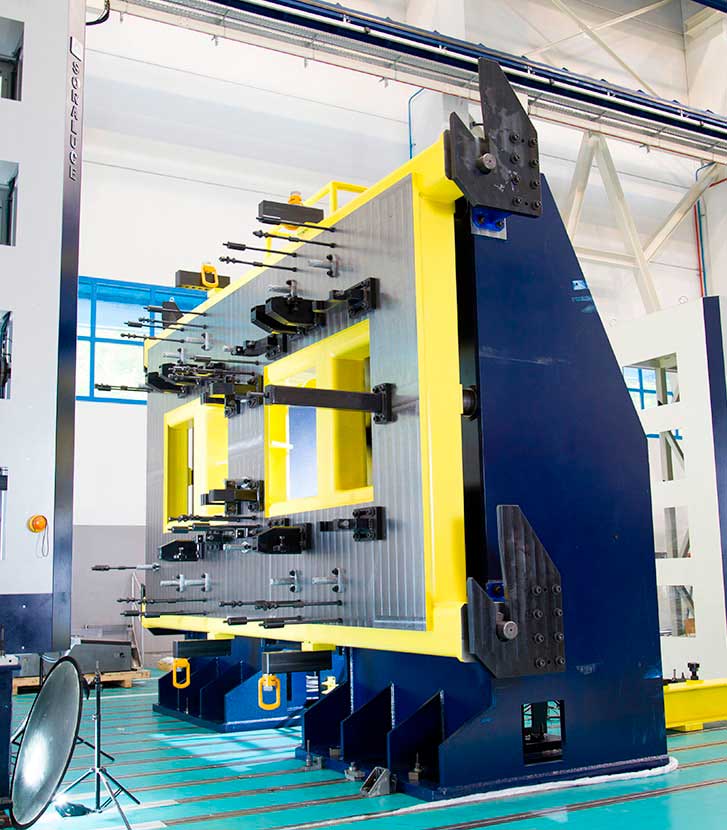

Angle plates

Angle plates

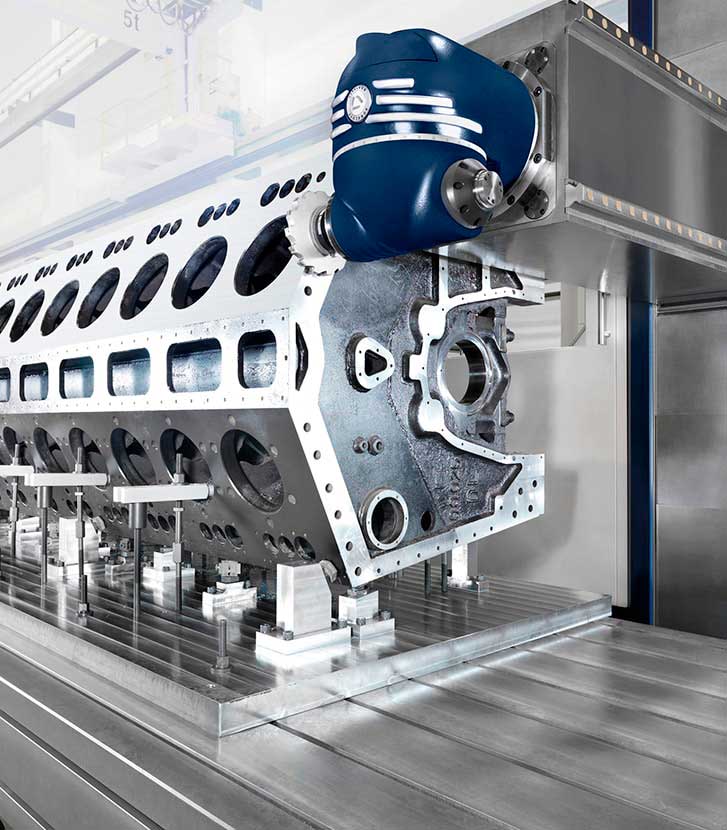

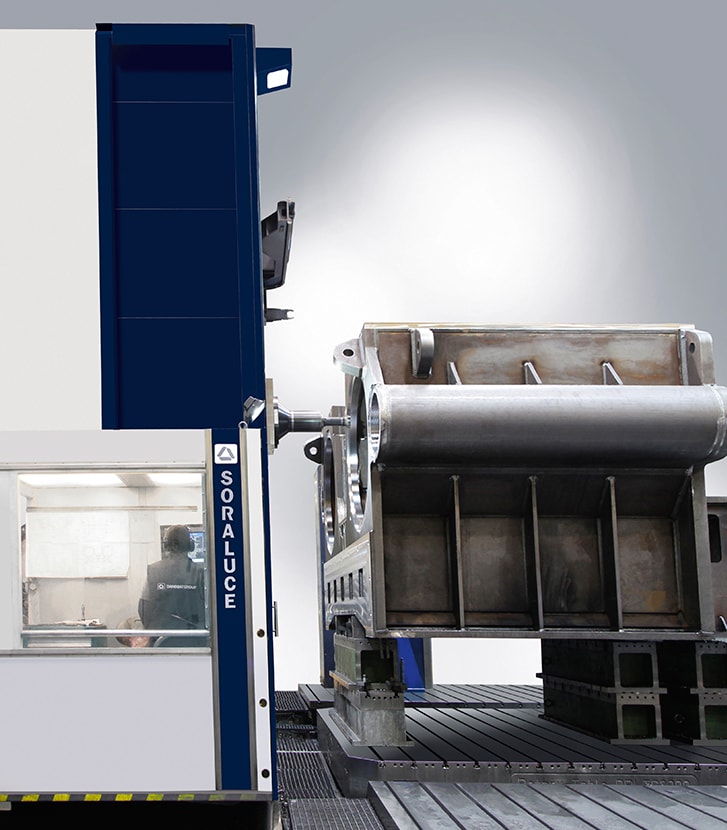

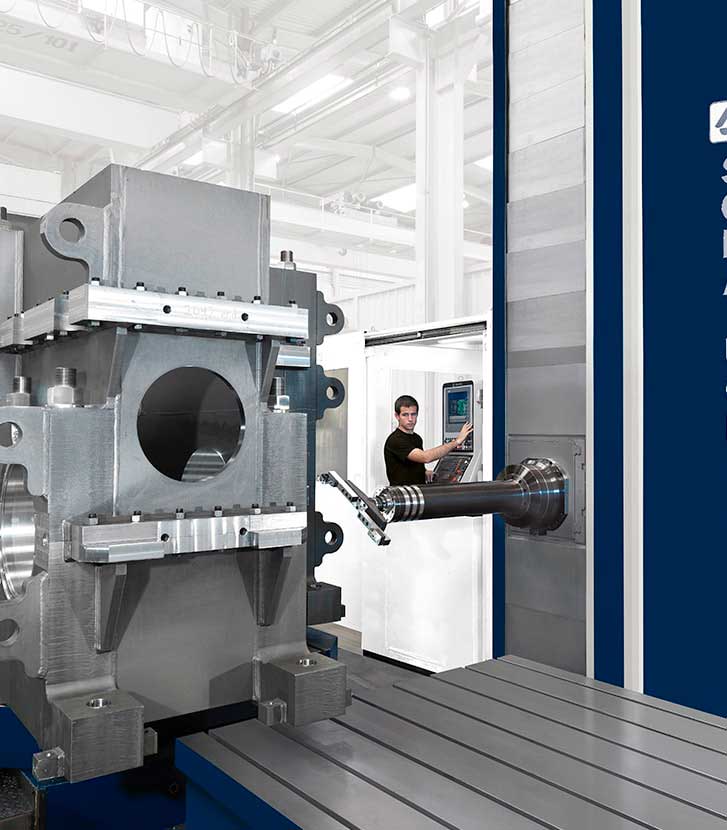

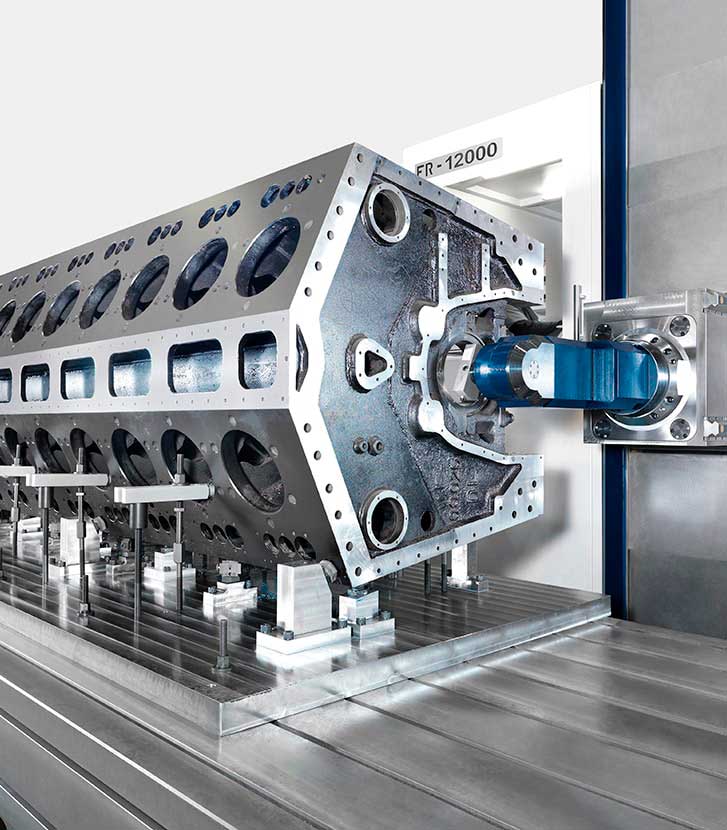

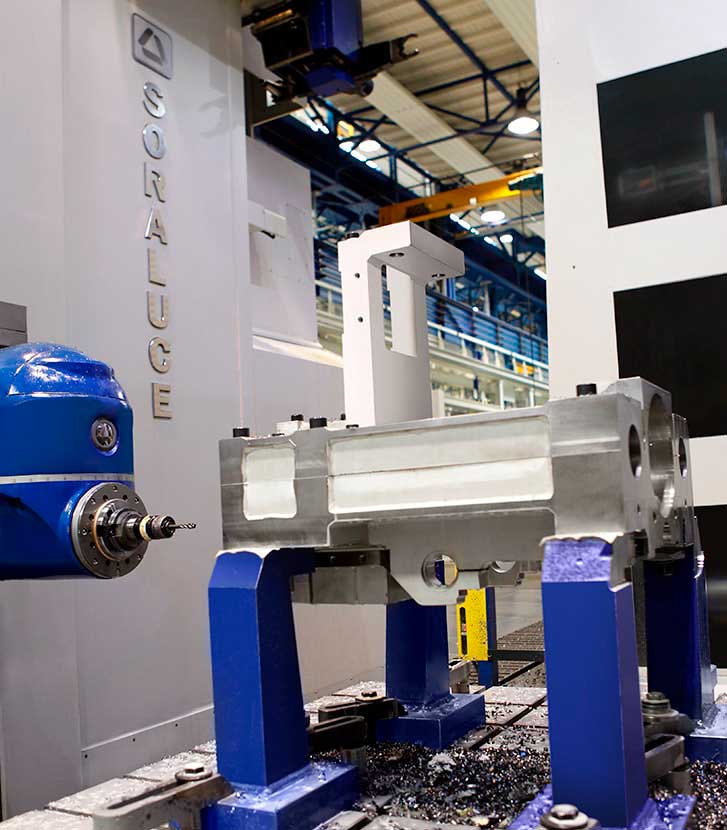

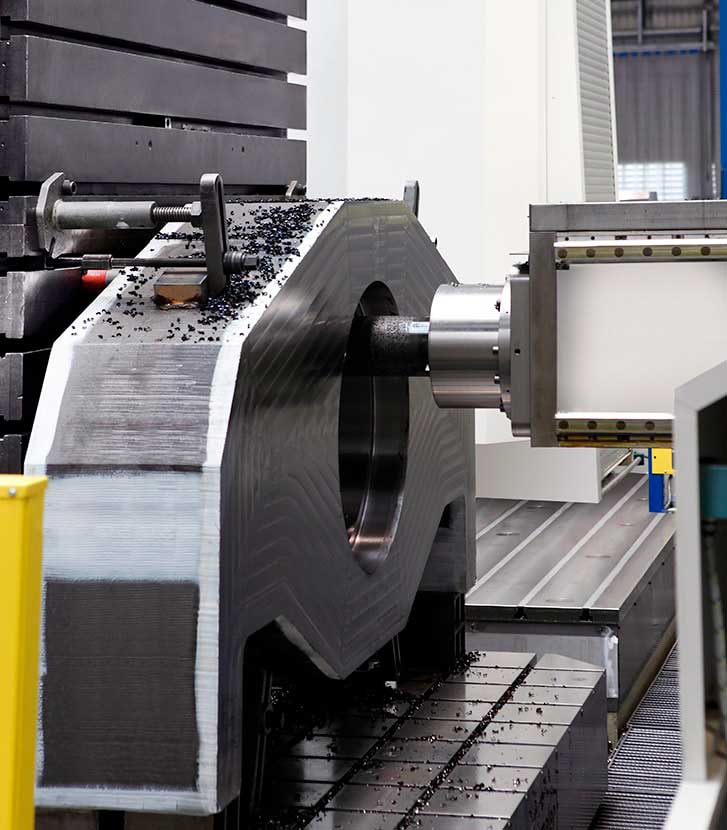

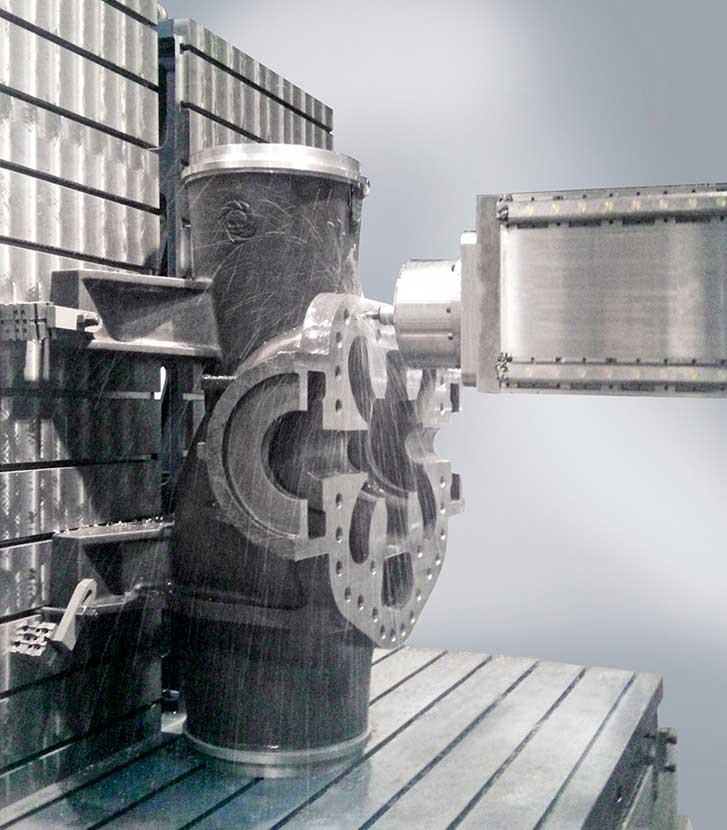

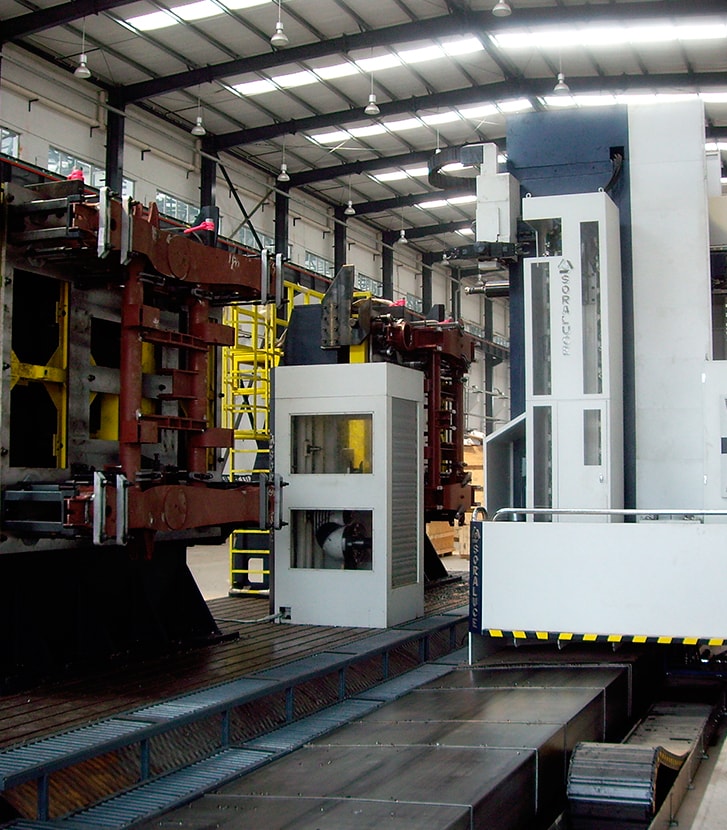

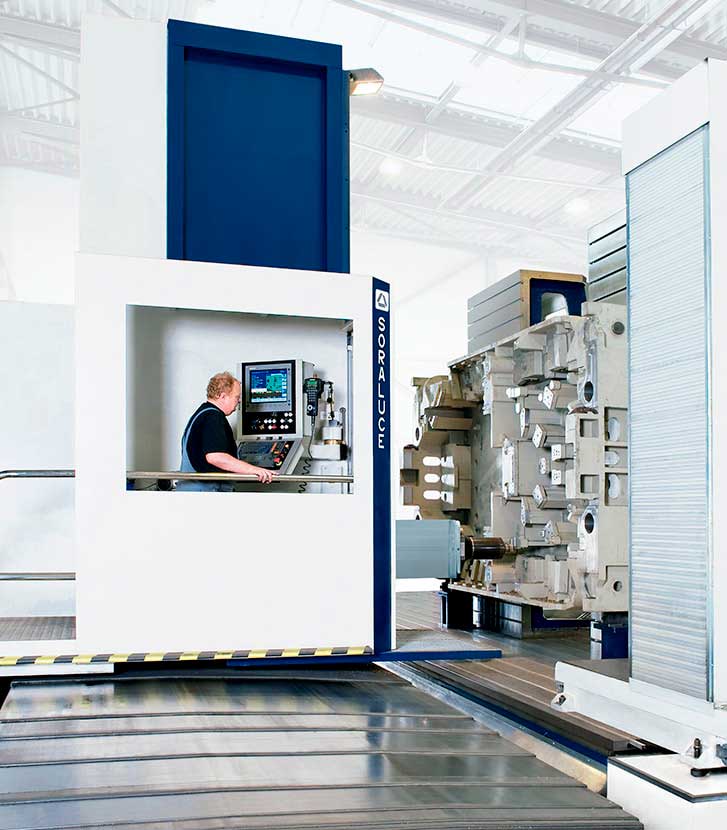

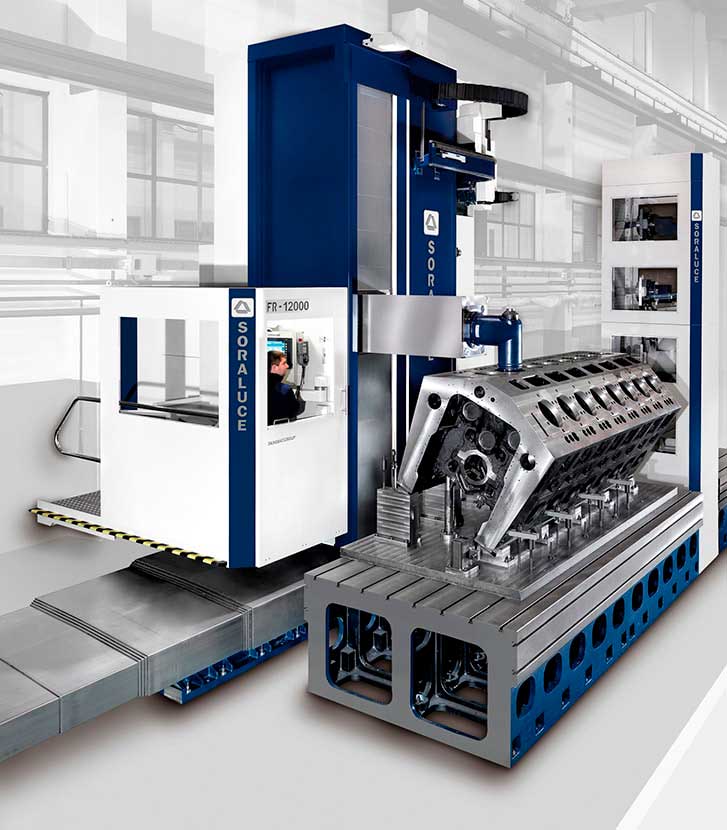

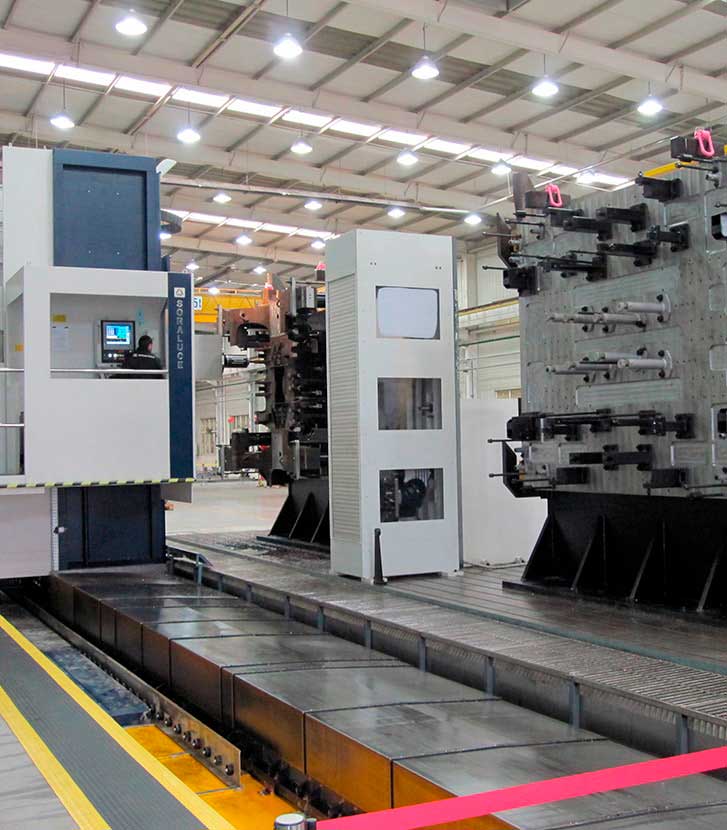

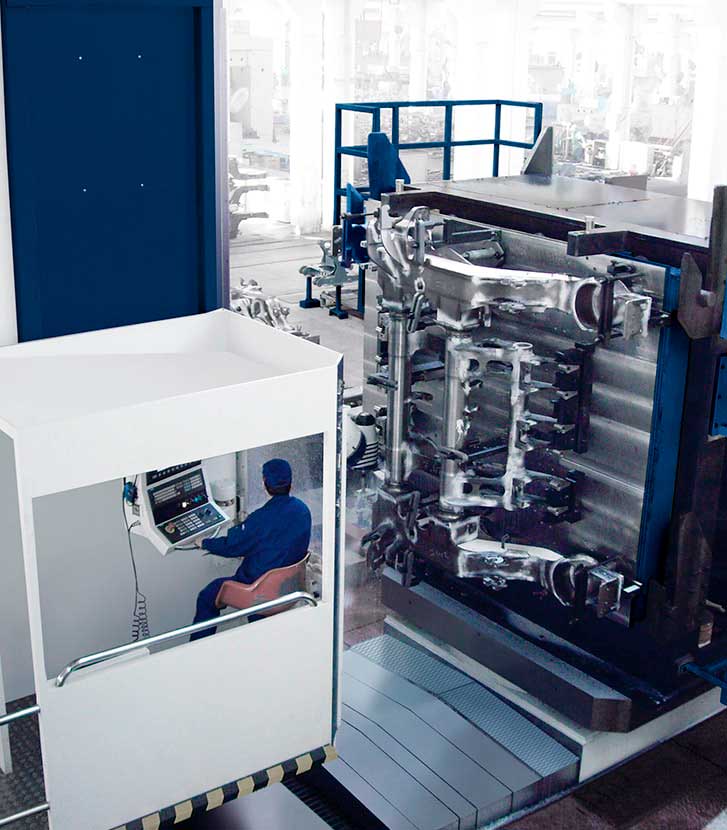

Applications

Machining Test

Try the machining test service on our machines with your workpieces. Put the capacity of our machines and our process team to the test, to be absolutely sure about your investment.

Challenge us
