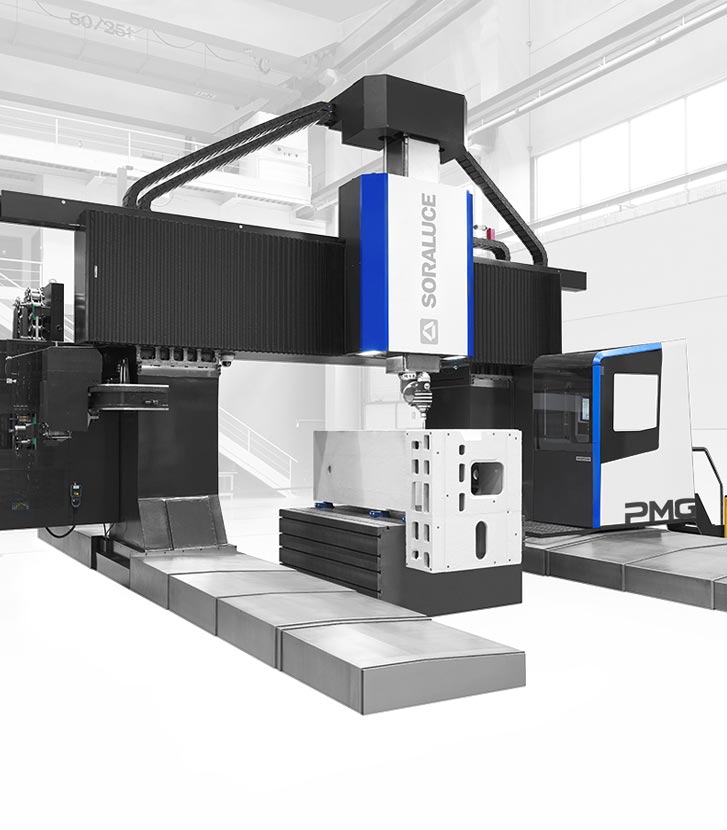

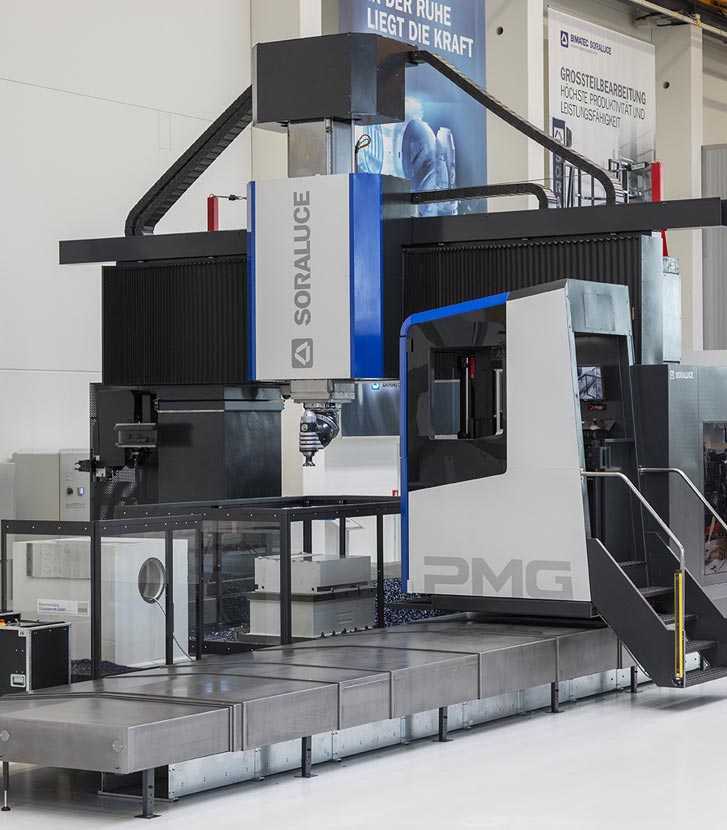

SORALUCE PMG gantry multitasking machine

Precision and versatility at a large scale

  • Advanced SORALUCE technology geared towards maximising productivity, precision and customisation: DAS system, Modular Quill, Vertical Ram Balance, Accura Heads, SSV and Adaptive Control
  • Multitasking machine: a milling and turning solution in a single set-up
  • Automated solutions: integrated palletised workpiece loading and unloading systems and robot-based solutions

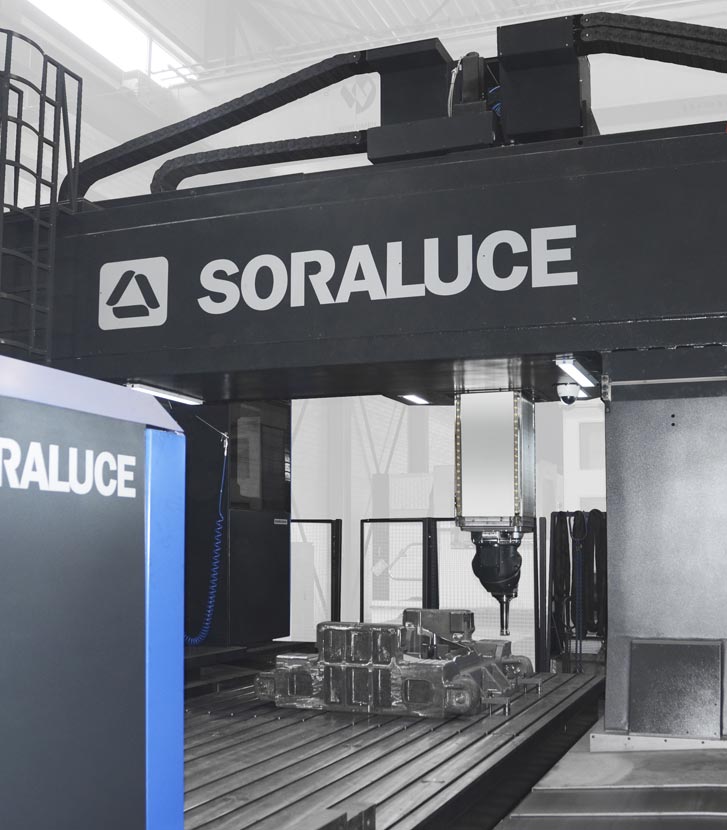

  • Fixed cross beam
  • SORALUCE head technology: a highly reliable, extensive range of SORALUCE quills and heads
  • Automatic head and tool changing systems
  • SORALUCE Digital, Data System: a comprehensive monitoring package with continuous information of machine and process status

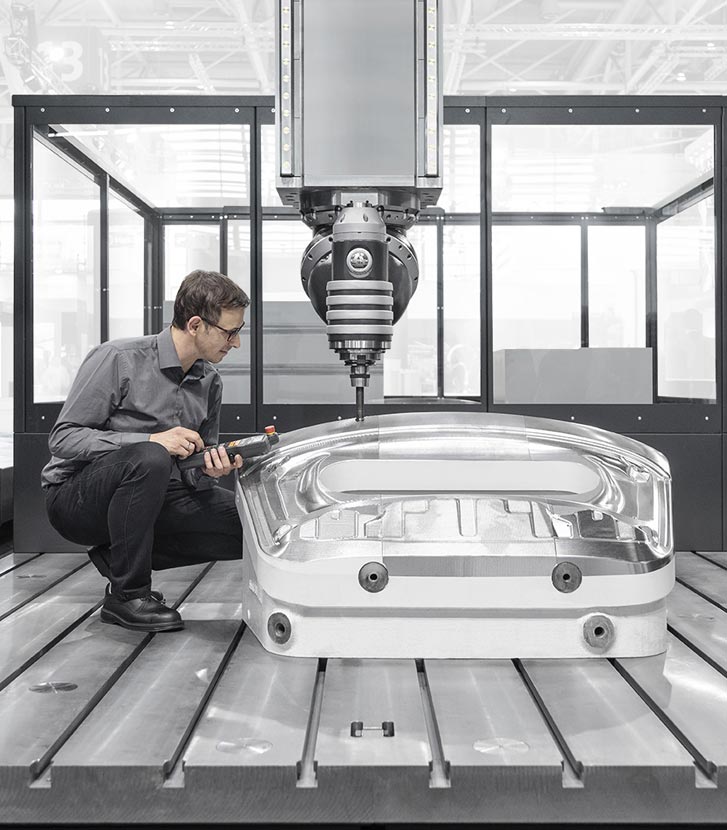

  • Precise and efficient machining results
  • Excellent dynamics thanks to the rapid travel of the axes
  • High power and torque for high performance machining
  • Improved stability to enable high stock removal for components belonging to the mechanical engineering, energy and capital goods industries
  • Flexible machine architecture facilitating different machine configurations, the use of different work stations and pendulum machining
  • One or two operator’s platforms with their respective control panels, thus allowing the best location of the operator in each operation
  • Total machine concept design: a complete working area analysed for optimal comfort, safety and ergonomics (maintenance spots, operator platform)





PMG

Longitudinal traverse "X" axis

mm

6000 / 8000 / 10000 - n x 2000

Cross traverse "Y" axis

mm

3950 / 4450 / 4950

Vertical traverse, Ram "Z axis"

mm

1600 / 2000

Clearance between columns

mm

3300 / 3800 / 4300 / 4800

Clearance height

mm

Up to 2800 (It can be adapted to customer needs)

Floor plate

mm

2000 / 2500 / 3000 / 3500 / 4000

Spindle power

kW

43 / 60

Spindle speed range

min-1

4000 / 5000 / 6000 / 7000

Spindle nose taper



ISO-50 / HSK-100

Rapid traverse

mm/min-1

30000

CNC system



Heidenhain TNC 640 / Siemens 840 D SL

Coolant system



External coolant system over a ring / Internal coolant system up to 70 bar

Tool magazine

No. tools

60 / 80 / 120

Customisation

Select your head:

Technical data

It enables for:

  • Automatic indexing of vertical and diagonal articulations.
  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system.
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • 22 / 24 / 28 / 37 / 43 / 46 / 55 kW
  • 2.5° x 2.5° / 0.001° x 0.001°
  • 4000 / 5000 / 6000 / 7000 min-1

Technical data

It enables for:

  • Automatic indexing of vertical and horizontal articulations.
  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system.
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • 37 / 43 / 46 kW
  • 1º x 1º
  • 4000 / 5000 min-1

Technical data

  • 5-axis continuous indexing head, indexing at 0,001ºx0,001º
  • Full 5 axis machining or use for fast positioning
  • Automatic tool changing.
  • Automatic head changing
  • Cooling through the spindle
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • Spindle locking option (turning operations)
  • Available for SORALUCE FP, FR and FXR models
  • 37 kW
  • 0.001° x 0.001°
  • 7000 min-1

Technical data

It enables for:

  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system (no external tubes exposed to chips).
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • Flexibility
  • Interchangeability
  • Options
  • C Axis
  • Maintainability
  • 43 / 46 / 49 / 81 / 106 kW
  • 2000 / 3000 / 4000 / 5000 min-1

Technical data

  • Special angular heads (railway bogie, motor block, etc.).
  • Special adaptors

Technical data

  • Automatic indexing head with turning capabilities
  • Up to 4000 rpm with standard steel bearings, or 5000 rpm with hybrid bearings
  • Air-oil lubricated gears
  • The head includes a clutch in the spindle area for positioning and clamping the spindle at any angle for turning operations. The clutch hydraulically clamps and unclamps the rotation of the spindle for turning operations
  • Possibility of working with bigger diameter workpieces, performing turning operations in a diagonal direction (interpolation X/Z axes)
  • The head can be positioned to avoid interferences with the workpiece
  • The use of this head is highly recommended on multitasking machines (milling and turning)
  • 37 kW
  • 2.5° x 2.5° / 0.001° x 0.001°
  • 4000 / 5000 min-1

Technical data

  • NC Facing heads
  • Angular heads
  • 5 axis heads
  • Electrospindles

Technical data

  • Heavy duty angular head
  • Angular and horizontal extensions
  • Turning adaptors
  • O&G oriented heads
  • Rotary couplings

Technical data

SORALUCE offers a wide range of tool holders positioned by a Hirth coupling and locked in place by 4 hydraulic clamping devices, thus ensuring a high degree of repeatability and smooth, leakage-free coolant and fluid recirculation.

  • Axial
  • Radial
  • Annual
  • 4 turning tools in 1 heads
  • Eccentric milling head
  • “Y axis head
  • “B” axis head

Working Stations

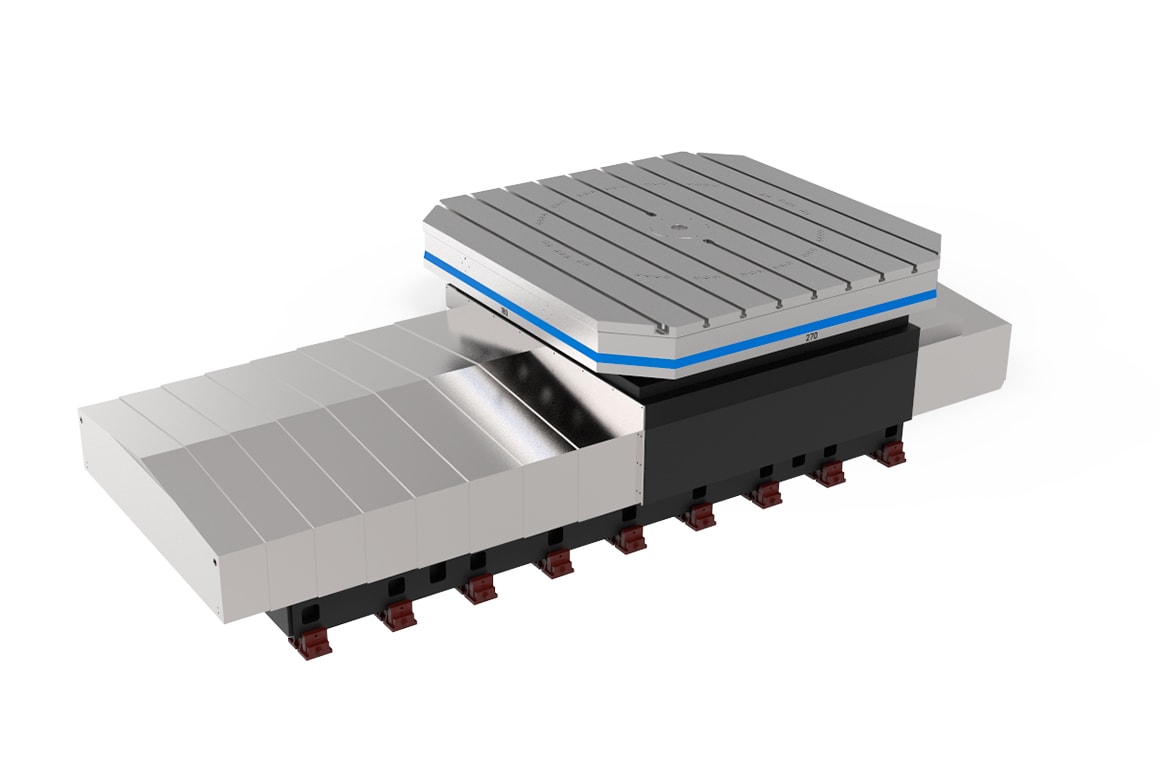

Rotary and rotary-travelling tables

Rotary and rotary-travelling tables

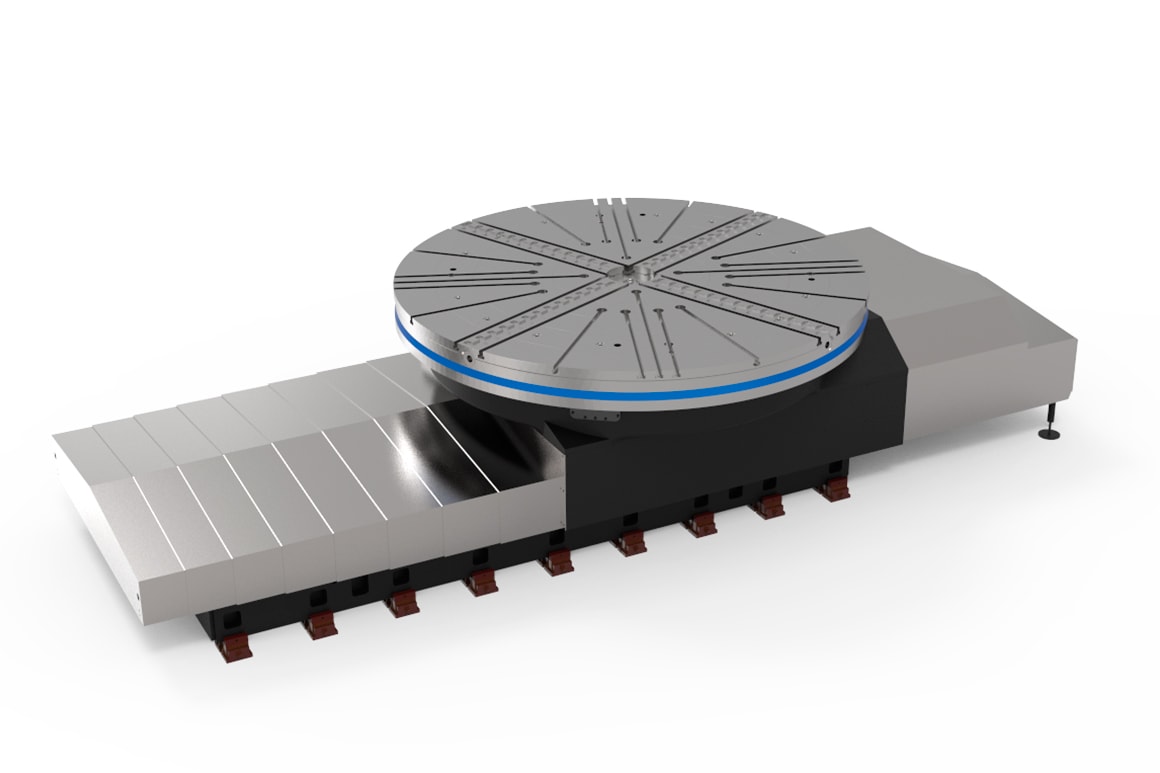

Turning and rotary-turning tables

Turning and rotary-turning tables

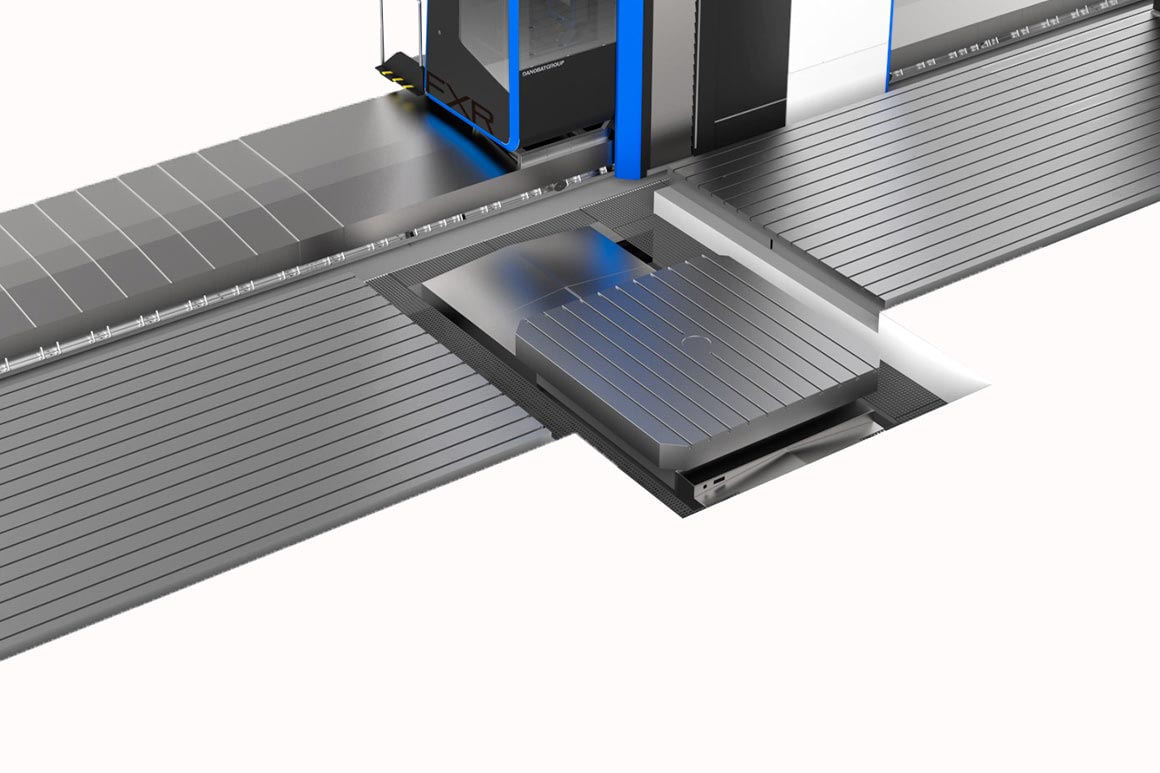

Floor plates

Floor plates

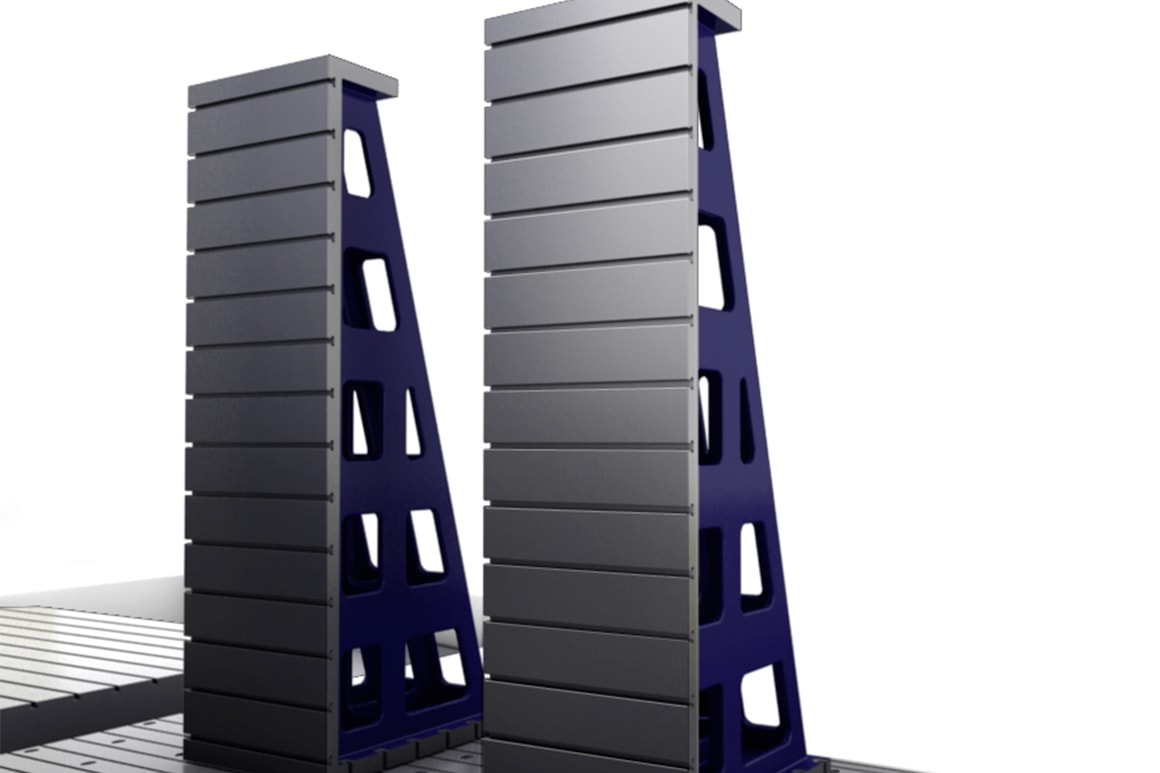

Angle plates

Angle plates

Applications

Machining Test

Try the machining test service on our machines with your workpieces. Put the capacity of our machines and our process team to the test, to be absolutely sure about your investment.

Challenge us
