SORALUCE TR-D bed type milling machine with rotary table

High performance and advanced technology in a compact machine

  • Advanced SORALUCE technology geared towards maximising productivity, precision and customisation: Accura Heads, SSV and Adaptive Control
  • 5 axes interpolation machining

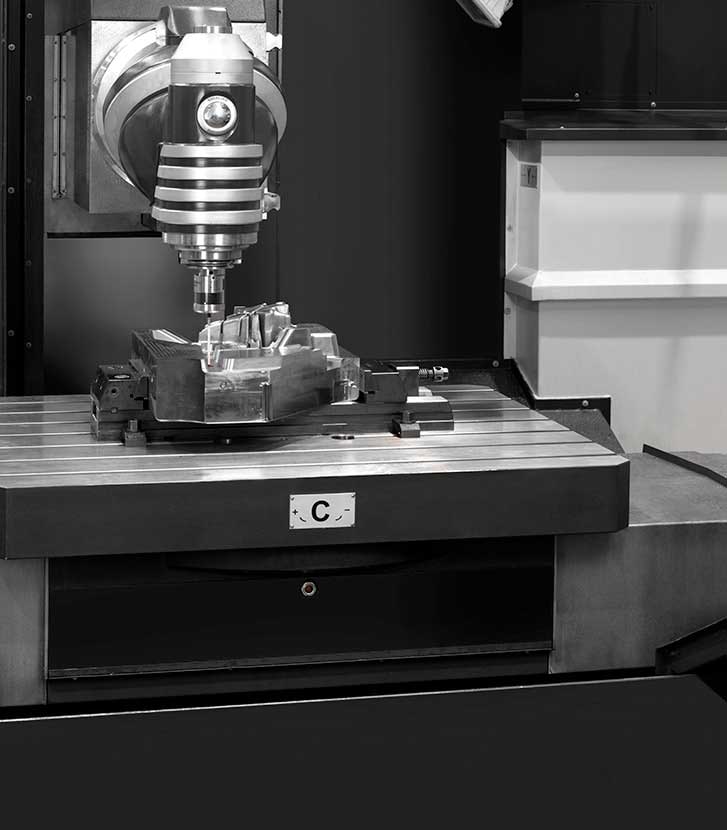

  • Rotary table for positioning and interpolation: Ø 1,600 mm

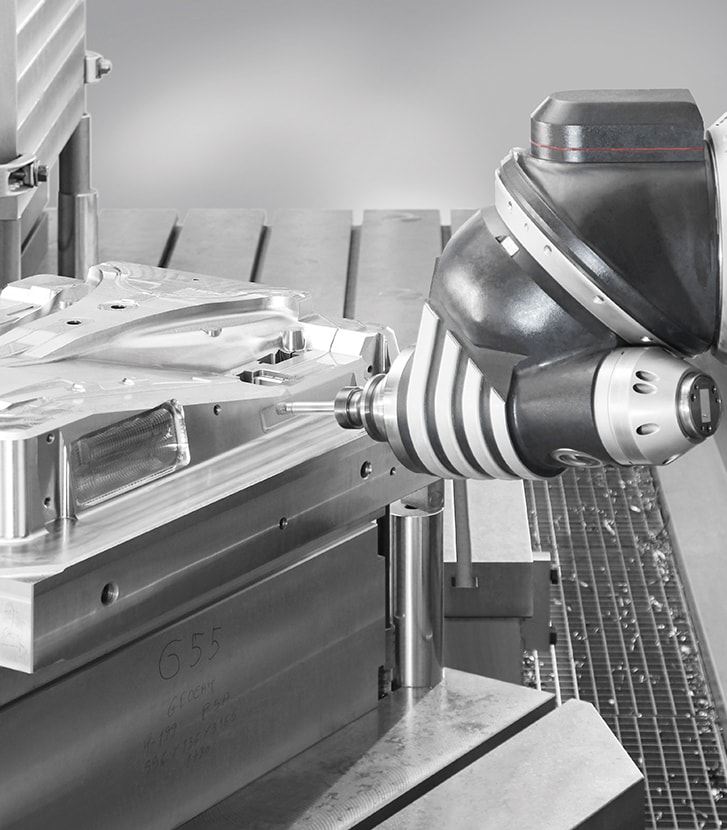

  • SORALUCE head technology: a highly reliable extensive range of SORALUCE heads, including step-less universal heads and vertical electrospindles
  • Automatic tool changing system
  • SORALUCE Digital, Data System: a comprehensive monitoring package with continuous information of machine and process status
  • Long-lasting precision, resulting from a strict design and assembly process
  • Optimal stiffness and mechanical stability, providing high stock removal capacity for roughing operations
  • Heavy duty machine, supporting workpiece loads of up to 10,500 kg.
  • High power and torque for high performance machining
  • Enhanced productivity and precision for components belonging to the moulds and dies industry
  • Total machine concept design: complete working area analysed for optimal comfort, safety and ergonomics (maintenance spots, operator area)

Characteristics



TR-D 30

TR-D 35

Table area

mm

1600 x 1600

3500 x 1450 (Ø1600)

T slots

mm

1 x 22 H8 + 10 x 22 H12

1 x 22 H8 + 9 x 22 H12

Longitudinal traverse “X” axis

mm

3000

3500

Vertical traverse “Z” axis

mm

1600

Cross traverse “Y” axis

mm

1300 / 1500

Heads



Universal / Orthogonal / Electrohusillo / Electrospindle

Spindle power

kW

43

Spindle nose taper



ISO-50 / HSK-100

Spindle speed range

min-1

4000 / 5000 / 6000 / 7000

Rapid traverse

mm/min

35000

CNC system



Heidenhain TNC 640 / Siemens 840 D SL

Coolant system



External coolant system over a ring / Internal coolant system up to 70 bar

Tool magazine

No. tools

20 / 40 / 60 / 80

Customisation

Select your head:

Technical data

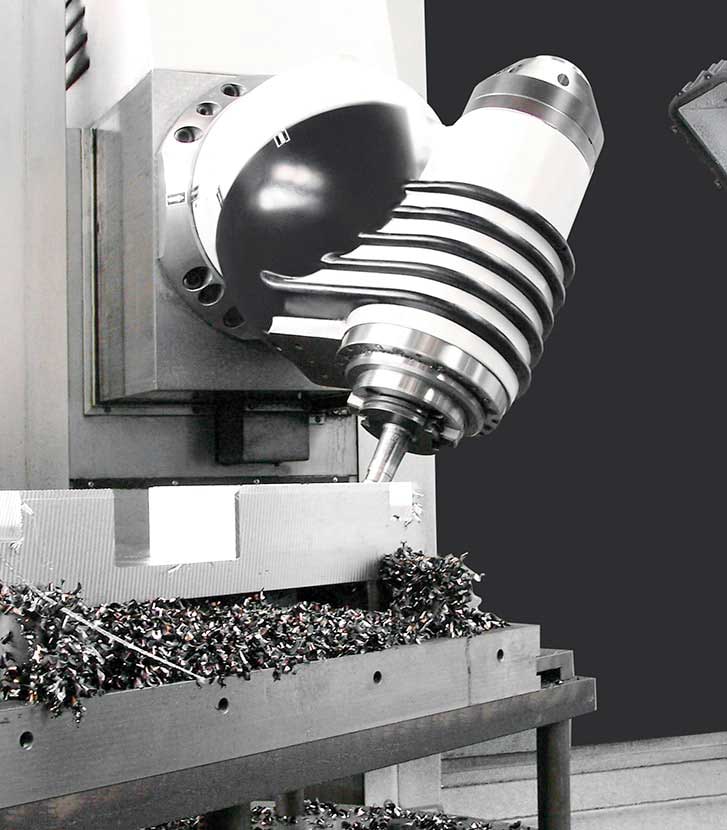

  • 5-axis continuous indexing head, indexing at 0,001ºx0,001º
  • Full 5 axis machining or use for fast positioning
  • Automatic tool changing.
  • Automatic head changing
  • Cooling through the spindle
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • Spindle locking option (turning operations)
  • Available for Soraluce FP, FR and FXR models
  • 37 kW
  • 0.001° x 0.001°
  • 7000 min-1

Technical data

It enables for:

  • Automatic indexing of vertical and diagonal articulations.
  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system.
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • 22 / 24 / 28 / 37 / 43 / 46 / 55 kW
  • 2.5° x 2.5° / 0.001° x 0.001°
  • 4000 / 5000 / 6000 / 7000 min-1

Technical data

It enables for:

  • Automatic indexing of vertical and horizontal articulations.
  • Automatic tool changing.
  • Automatic head changing.
  • Internal / external cooling system.
  • Suitable for any type of taper and pull-studs.
  • Different clamping forces for different tools.
  • Suitable for setting different accessories.
  • 37 / 43 / 46 kW
  • 1º x 1º
  • 4000 / 5000 min-1

Working Stations

Rotary table

Rotary table
