SORALUCE VTC vertical multitasking centre

Avant-garde high precision multitasking machine

    • Advanced SORALUCE technology geared towards maximising productivity: DPS System and Chip Breaker.
    • Multitasking machine: a turning and milling solution in a single set-up
    • Automated solutions: integrated palletised workpiece loading and unloading systems and robot-based solutions
    • SORALUCE head technology: a highly reliable, extensive range of SORALUCE tool holders and heads
    • Automatic head and tool changing systems
    • SORALUCE Digital, Data System: comprehensive monitoring package with continuous information of machine and process status
    • Hydrostatic technology in the X and Z axes and a table for superior robustness of the machine
    • High productivity results incorporating a double RAM for improved chip removal
    • Excellent machining results regarding dimensional accuracy and surface finish
    • High thermal stability
    • Improved stability to enable high stock removal for components belonging to the aerospace, railway, energy generation, high precision ball bearing, mining, valve manufacturing and outsource and maritime sectors
    • Flexible machine: the vertical travel of the traverse enables the machining of short and high workpieces
    • Total machine concept design: complete working area analysed for optimal comfort, safety and ergonomics (maintenance spots, operator area)
Characteristics   VTC-H
Table diameter mm 4000 / 5000 / 7000
Turning diameter mm 5000 / 6000 / 8000
Table speed min-1 80 / 60 / 35
Table drive motor kW  57 x 2 / 81 x 2 / 105 x 22
Max. workpiece weight kg 80000 / 100000 / 150000
RAM size mm 300 x 300 / 400 x 400
RAM stroke "Z" mm 2000
Maximum height table to RAM mm 3250 / 3600 - 3600 / 4650 - 4650 / 6200
RAM traverse "X" mm 5600 / 6600 / 8800
Vertical traverse of cross rail, "W" traverse mm 2000 - 2000 / 3500
Spindle power kW  37
Spindle speed range min-1 2000
Standard ATC No. tools 18 / 2 x 18 / 18 + 30

Customisation

Select your head:

Technical data

SORALUCE offers a wide range of tool holders positioned by a Hirth coupling and locked in place by 4 hydraulic clamping devices, thus ensuring a high degree of repeatability and smooth, leakage-free coolant and fluid recirculation.

  • Axial
  • Radial
  • Annual
  • 4 turning tools in 1 heads
  • Eccentric milling head
  • “Y axis head
  • “B” axis head
Turning tool holders

Working Stations

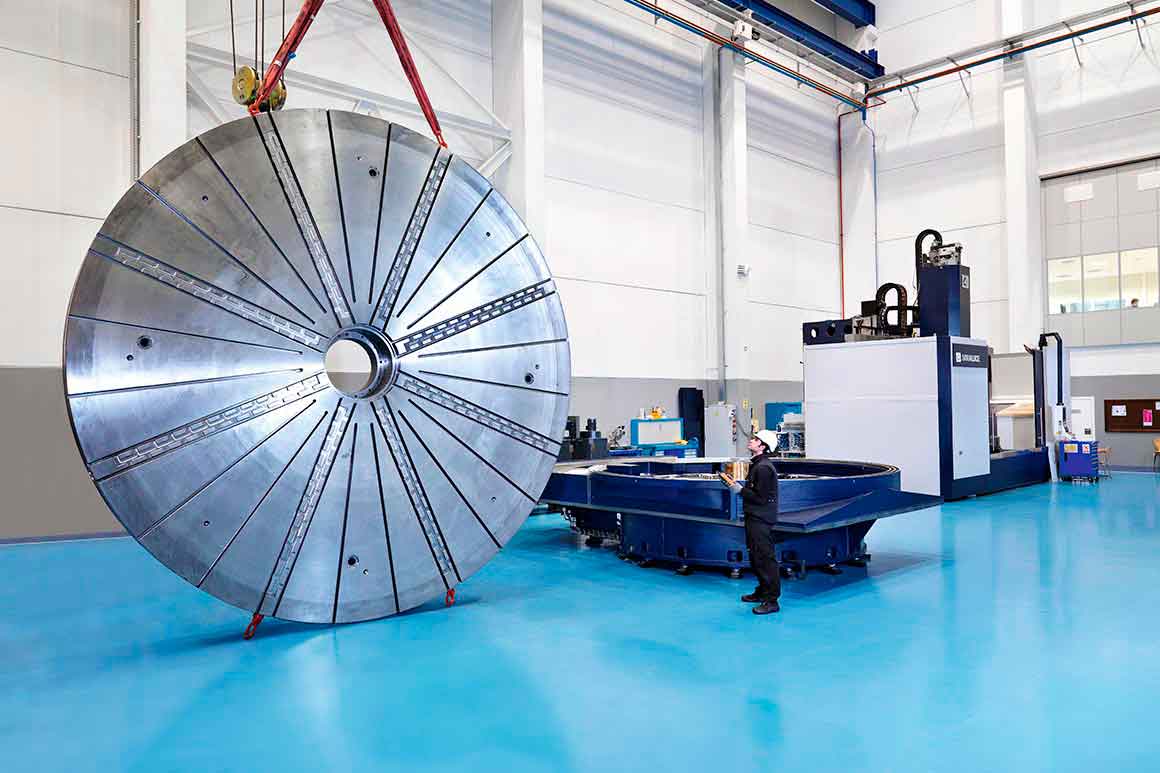

Turning table

Turning table

Applications

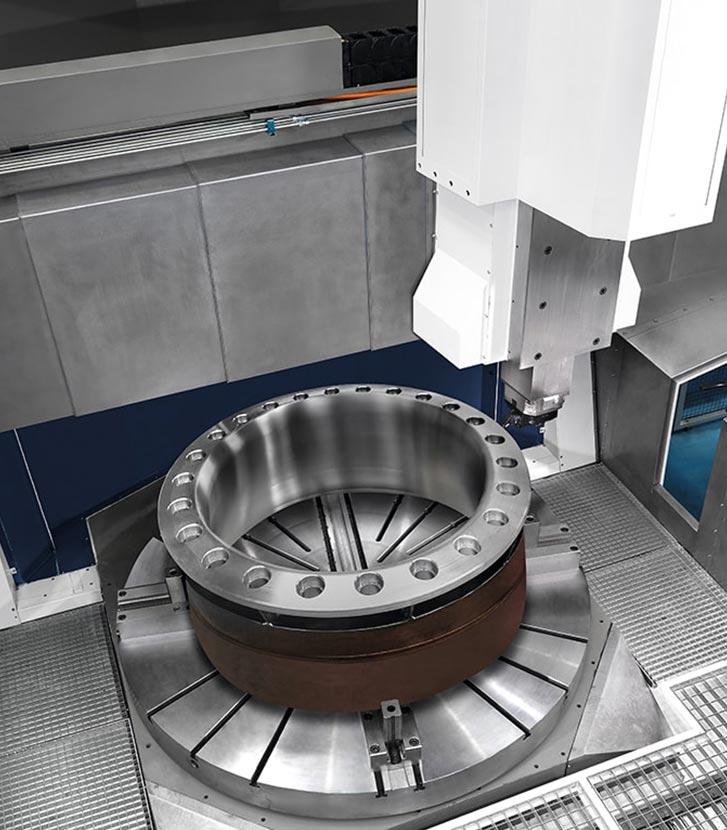

Engine casing SORALUCE VTC-H
Large components SORALUCE VTC-H

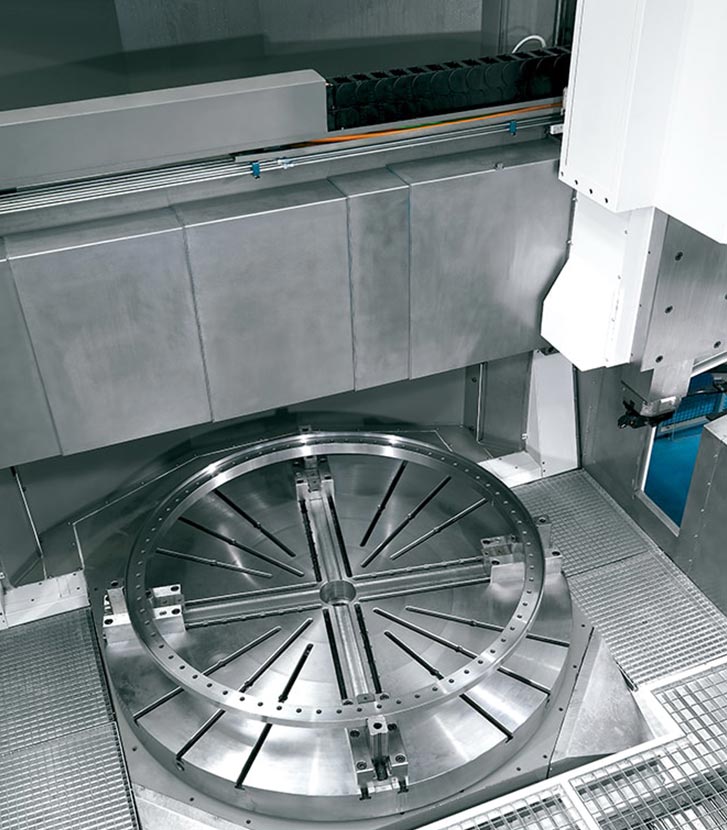

Ring SORALUCE VTC-H
