SORALUCE VTC multitasking vertical centre
Avant-garde high precision multitasking machine
- Advanced SORALUCE technology geared towards maximising productivity: DPS System and Chip Breaker.
- Multitasking machine: a turning and milling solution in a single set-up
- Automated solutions: integrated palletised workpiece loading and unloading systems and robot-based solutions
- SORALUCE head technology: a highly reliable, extensive range of SORALUCE tool holders and heads
- Automatic head and tool changing systems
- SORALUCE Digital, Data System: comprehensive monitoring package with continuous information of machine and process status
- High productivity results incorporating a double RAM for improved chip removal
- Excellent machining results regarding dimensional accuracy and surface finish
- High thermal stability
- Improved stability to enable high stock removal for components belonging to the aerospace, railway, energy generation, high precision ball bearing, mining, valve manufacturing and outsource and maritime sectors
- Flexible machine: the vertical travel of the traverse enables the machining of short and high workpieces
- Total machine concept design: complete working area analysed for optimal comfort, safety and ergonomics (maintenance spots, operator area)
|
Characteristics |
VTC 2100 |
VTC 2500 |
VTC 2800 |
VTC 3200 |
VTC 4000 |
|
|
Table diameter |
mm |
1800 |
2100 |
2400 |
2800 |
3500 |
|
Turning diameter |
mm |
2100 |
2500 |
2800 |
3200 |
4000 |
|
Table speed |
rpm |
320 |
260 |
200 |
175 |
100 |
|
Table drive motor |
kW |
55 /71 / 92 |
||||
|
Max. work piece weight |
kg |
17000 |
20000 |
25000 |
30000 |
50000 |
|
RAM size |
mm |
250 x 250 |
||||
|
RAM stroke “Z” |
mm |
1500 |
||||
|
Maximum height table to RAM |
mm |
1870 / 2270 / 2670 / 3070 |
1800 / 2200 / 2600 / 3000 |
1782 / 2182 /2582 / 2982 |
||
|
RAM traverse “X” |
mm |
2470 |
2870 |
3330 |
3730 |
4600 |
|
Vertical traverse of cross rail, “W” traverse |
mm |
800 / 1000 |
||||
|
Live spindle power |
kW |
22 / 30 / 37 / 40 |
||||
|
Live spindle speed |
rpm |
3000 |
||||
|
Standard ATC |
No. tools |
18 / 2 x 18 |
||||
|
Approx. weight |
Kg |
55000 |
70000 |
80000 |
90000 |
120000 |
Customisation
Select your head:
Technical data
SORALUCE offers a wide range of tool holders positioned by a Hirth coupling and locked in place by 4 hydraulic clamping devices, thus ensuring a high degree of repeatability and smooth, leakage-free coolant and fluid recirculation.
- Axial
- Radial
- Annual
- 4 turning tools in 1 heads
- Eccentric milling head
- “Y axis head
- “B” axis head
Technologies
Working Stations

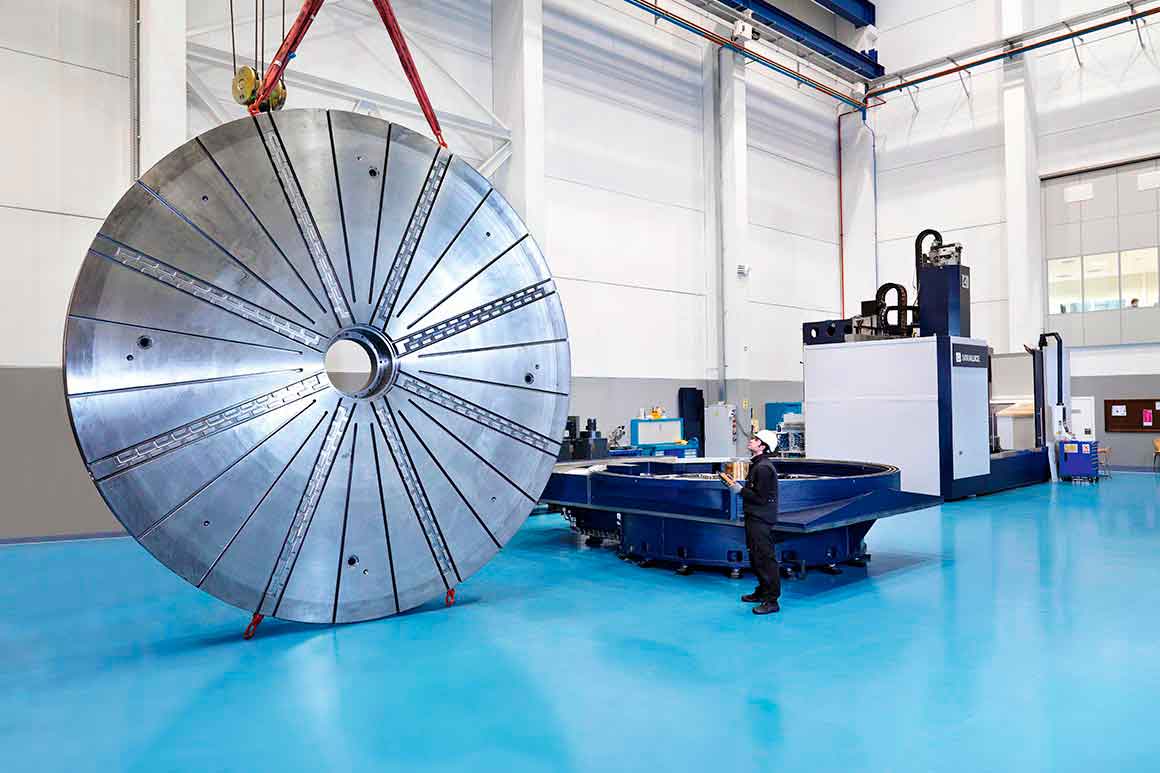

Turning table

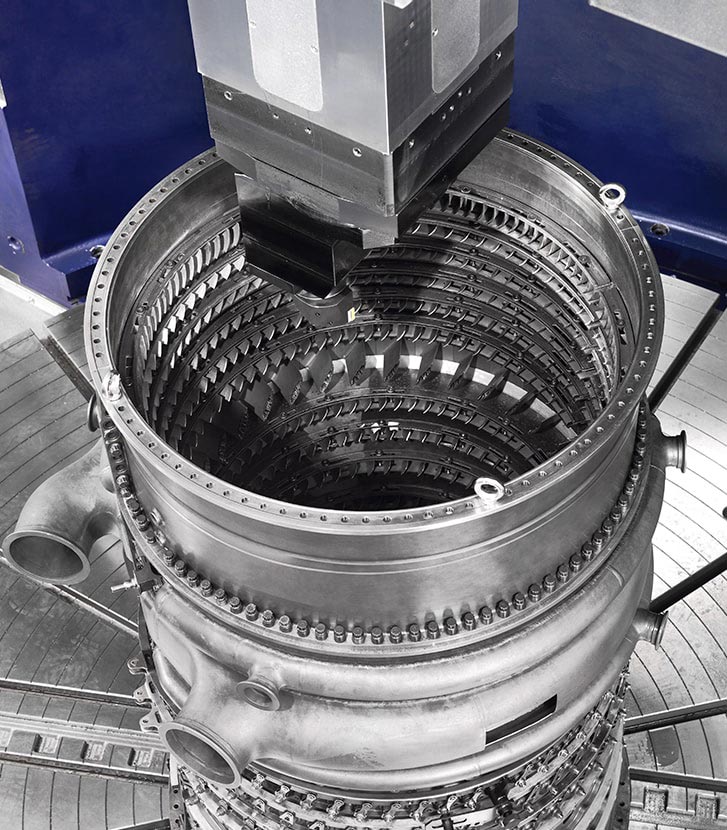

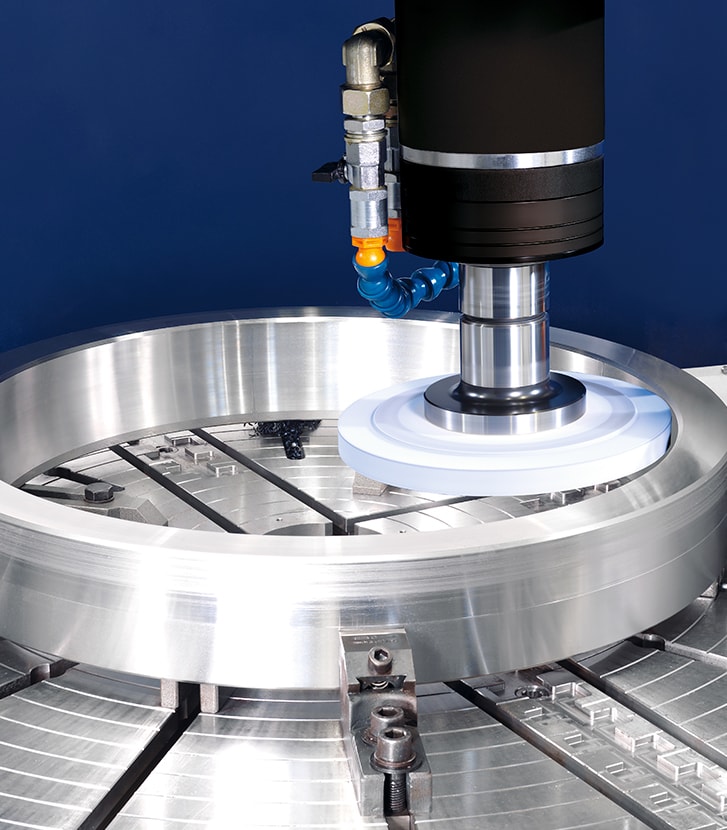

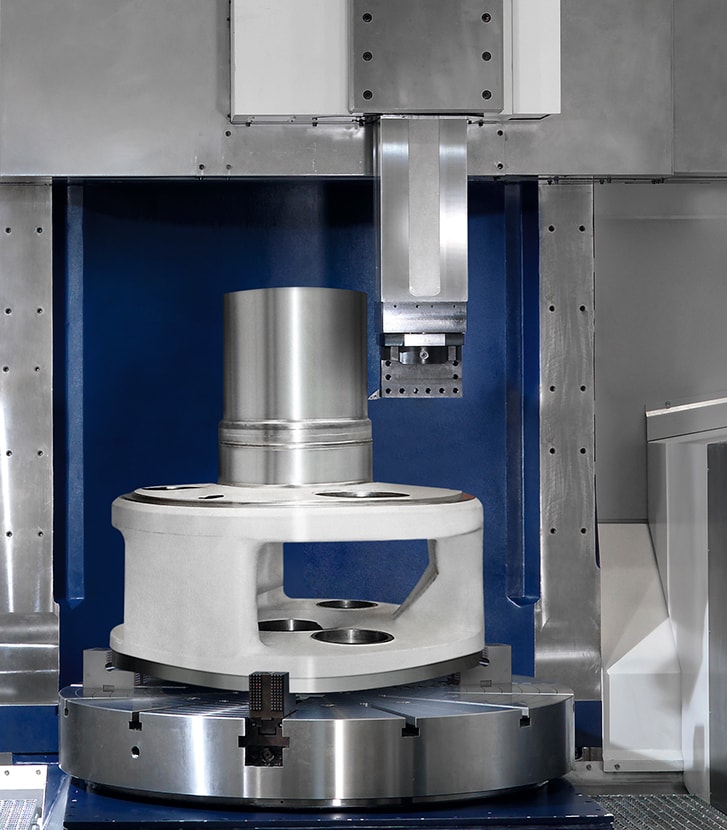

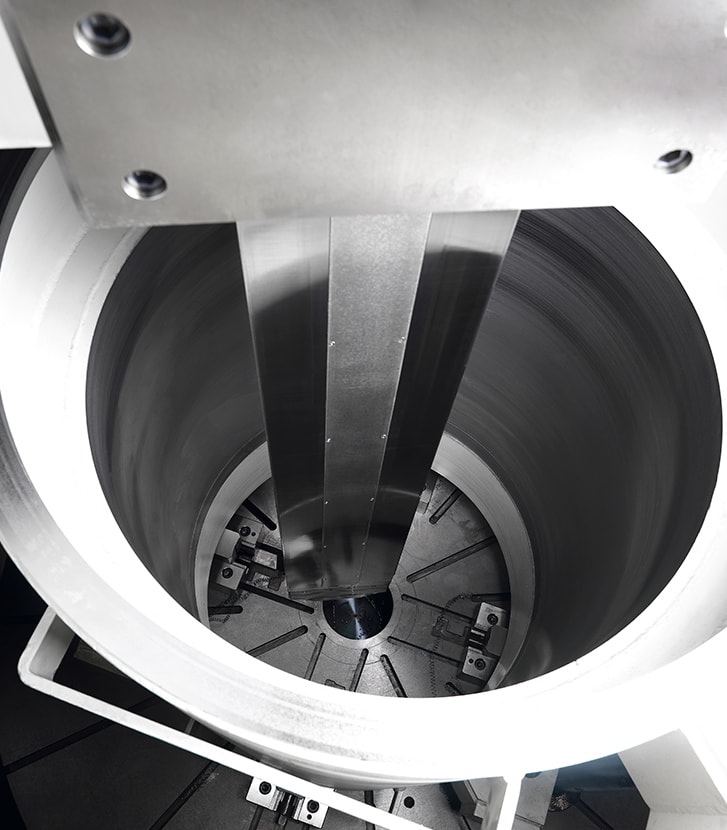

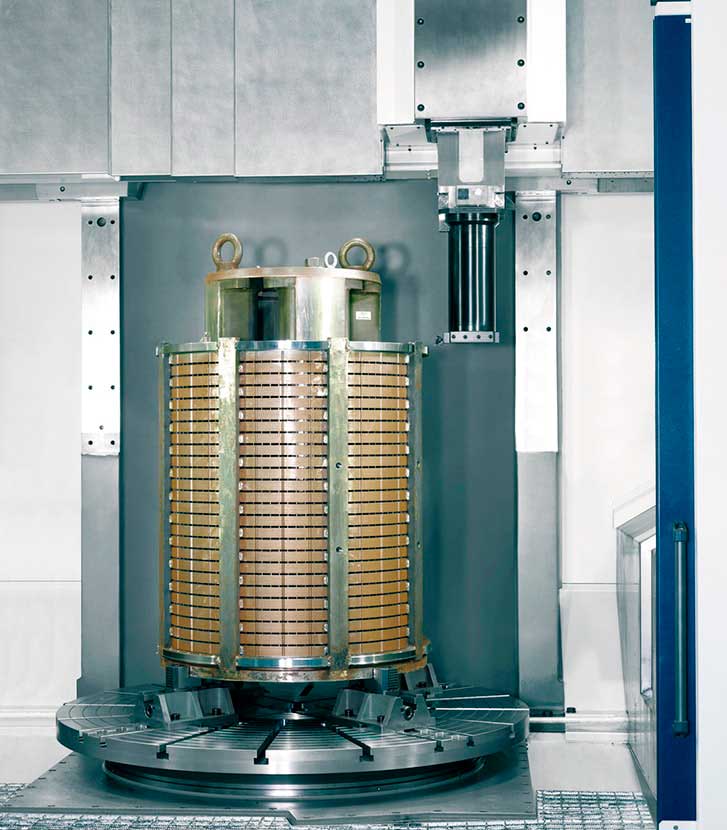

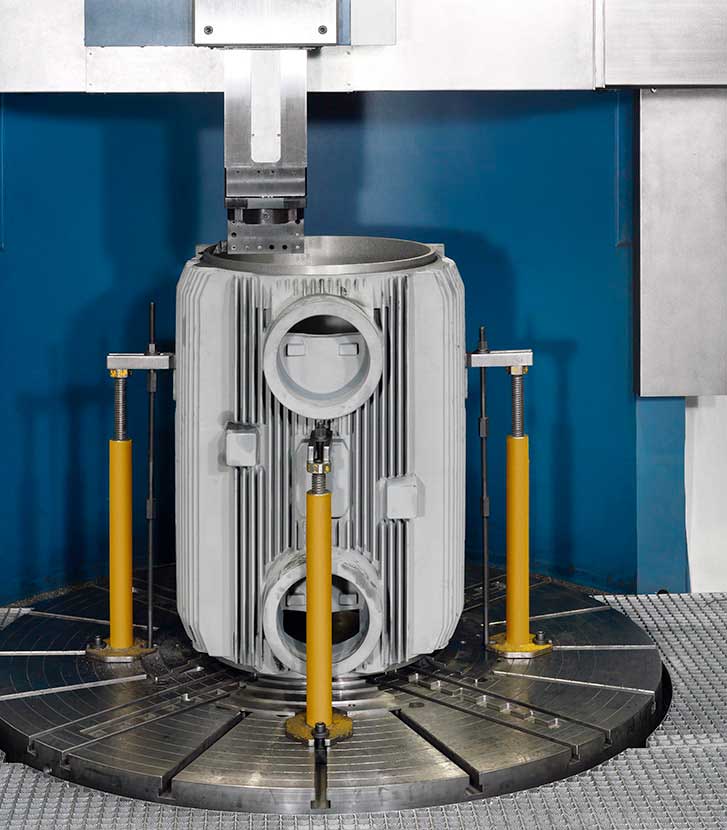

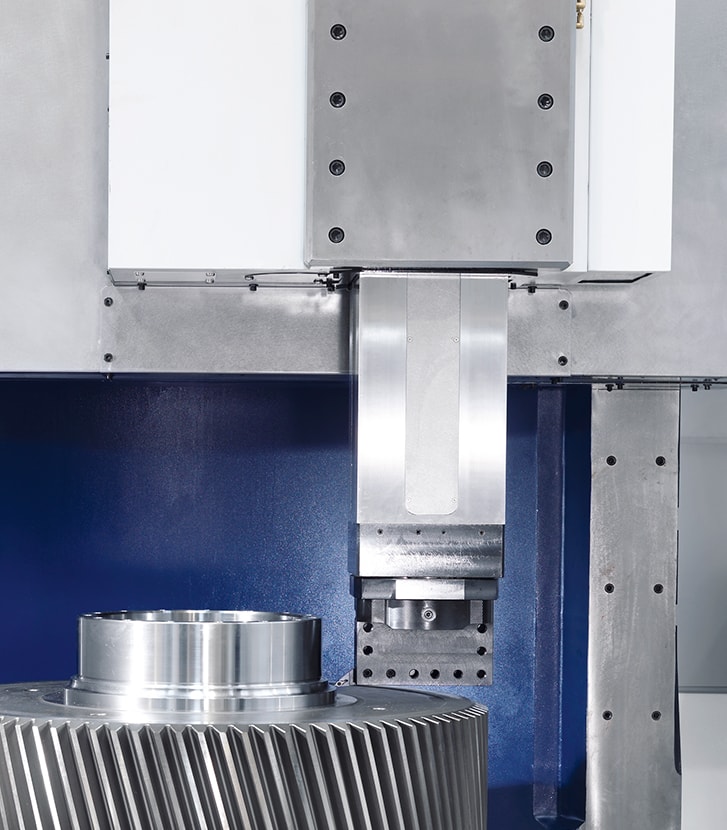

Applications
